Products Description
Product Highlights

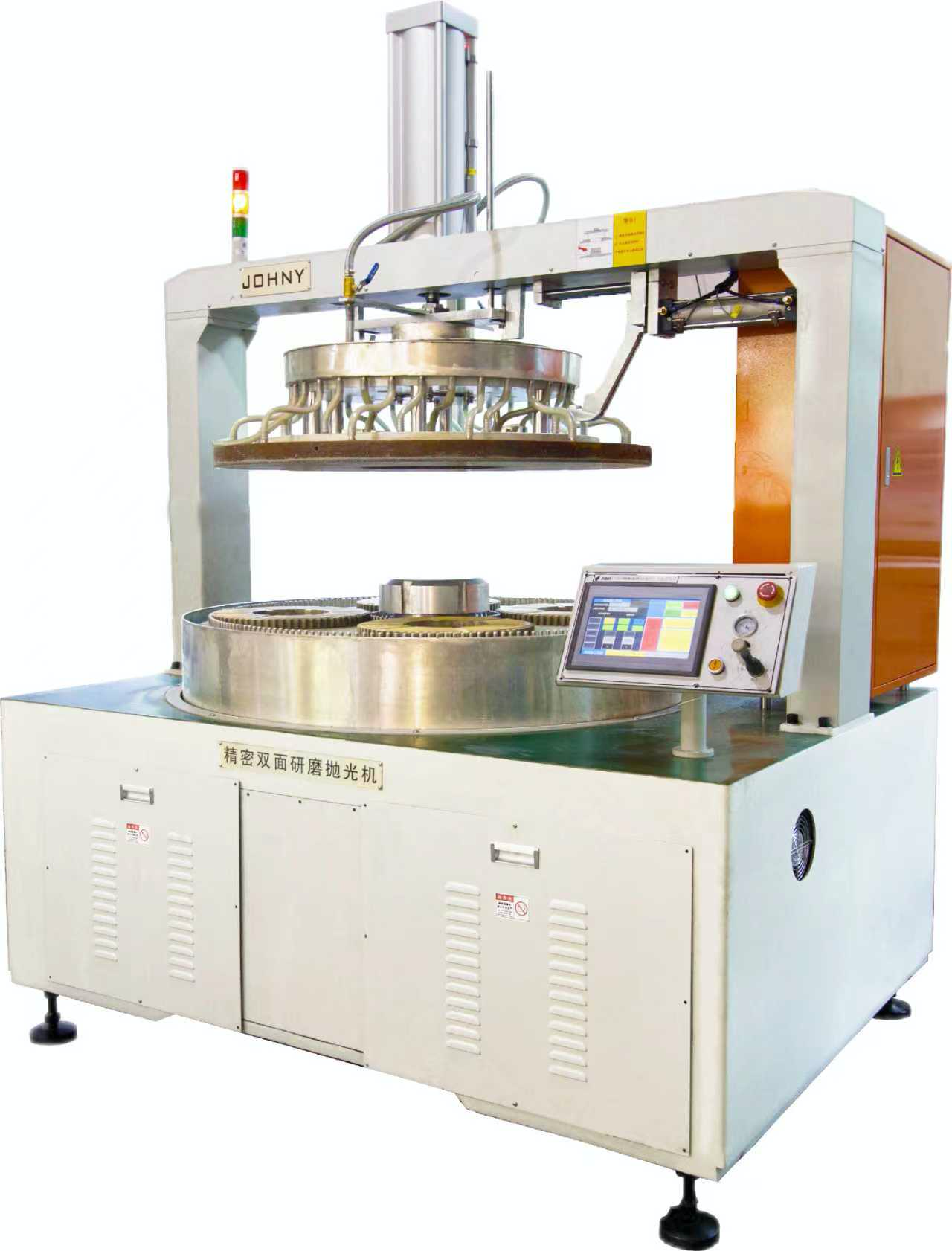

Ultra-Precision Double-Side Polishing：
Achieves flatness error ≤0.002mm, ideal for large workpieces requiring ultra-high flatness and parallelism.
Independent Motor Control：
Upper/lower plates and internal gears can be adjusted individually for speed and direction to meet different processes and dressing needs.
Flexible Workpiece Handling：
Outer gear ring with automatic and jog lift functions enables easy workpiece loading/unloading and planetary wheel height adjustment.
Stable Pressure Control：
Japanese high-precision pressure system with automatic lift and self-locking cylinder ensures consistent pressure.
Smart & Reliable Operation：
Frequency-controlled motors with soft start/stop and shock-free forward/reverse rotation; touch-screen digital interface for intuitive, visual parameter control.
| ZS1200B-S单面研磨抛光机主要参数 | |||
Grinding Plate Size (mm) | Φ1200*355 | Grinding Plate / Internal Gear Speed (r.p.m) （r.p.m） | 0-50 |
Number of Fixtures | 6 | Minimum Workpiece Thickness (mm) | 0.3 |
Maximum Workpiece Diameter （mm） | Ф390 | WorkingAir Pressure （Mpa） | 0.4~0.5 |
Machine Weight | 4500KG | PowerSupply Voltage | Three-phase Five-wire 380V |
Overall Dimensions （W*D*H）mm | 2200*1700*2800 | Total Power | 15KW |
