Products Description
Product Highlights
High-Precision Polishing：
Dual-plane design with upper/lower plates and central gear-driven rotation ensures uniform grinding for precision parts, optical glass, quartz wafers, zirconia ceramics, valves, and oil pump blades.
Stable Pressure Control：
Japanese servo system with ±2kg torque control accommodates large and ultra-thin workpieces while maintaining consistent pressure.
Intuitive Operation：
Upper plate lift/drop (quick/slow) centralized on touch screen; easy and intuitive control.
Flexible & Accurate Transmission：
Independent motor-driven transmission with adjustable speed per motor; full servo control ensures precise movement.
Safe & Reliable：
Soft start/stop, shock-free operation, and automatic stop in case of misoperation; touch-screen digital system with visual parameter settings.

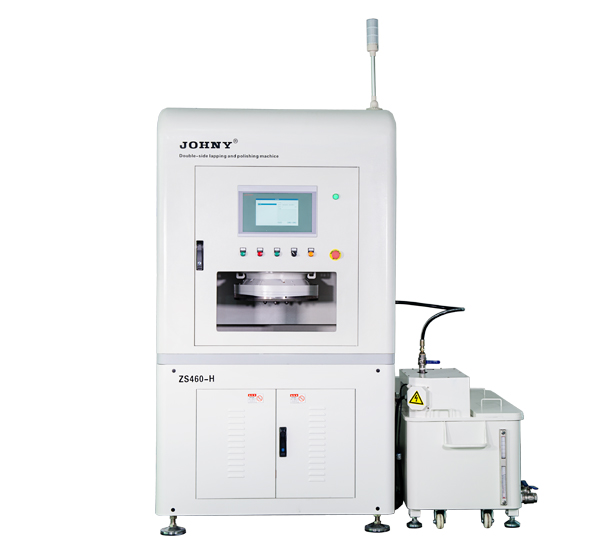

| ZS460B-H单面研磨抛光机主要参数 | |||
Grinding Plate Size (mm) | Φ460*180 | Grinding Plate / Internal Gear Speed （r.p.m） | 0~50 |
Number of Fixtures | 6 | Minimum Workpiece Thickness (mm) | 0.2 |
Maximum Workpiece Diameter （mm） | Ф270 | WorkingAir Pressure （Mpa） | 0.4~0.5 |
Machine Weight | 2800KG | PowerSupply Voltage | Three-phase Five-wire 380V |
Overall Dimensions （W*D*H）mm | 1600*2000*2800 | Total Power | 11KW |
